SA..ES / SI..ES Series E
DIN 71802 standard ball joints for light-duty throttle and linkage mechanisms.
- ISO 9001:2015 Certified
- M5 - M64 Thread Range
- 304 / 316 / 17-4PH Grades
- Custom Drawings Supported
Anatomy of a Precision Rod End Bearing
Engineered to accommodate angular misalignment and oscillating pivoting while transferring heavy loads.
Component 01
Component 02
The Forged Housing (Body)
The Spherical Inner Ring (Ball)
The Load Race (Liner)
Explore Series
Comprehensive standards covering Male/Female threads and Lubricated/Maintenance-Free inner structures.

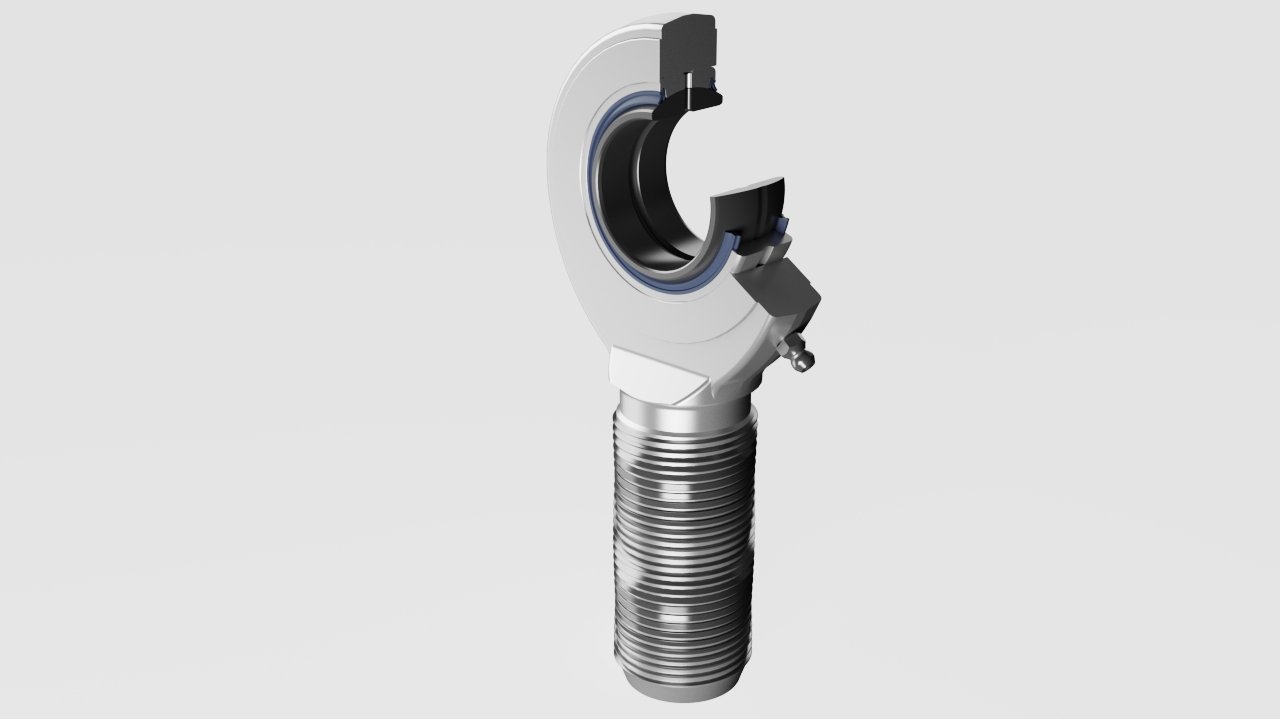

SA / SI..ES Series
TYPE
Lubricated
Thread
Female & Male

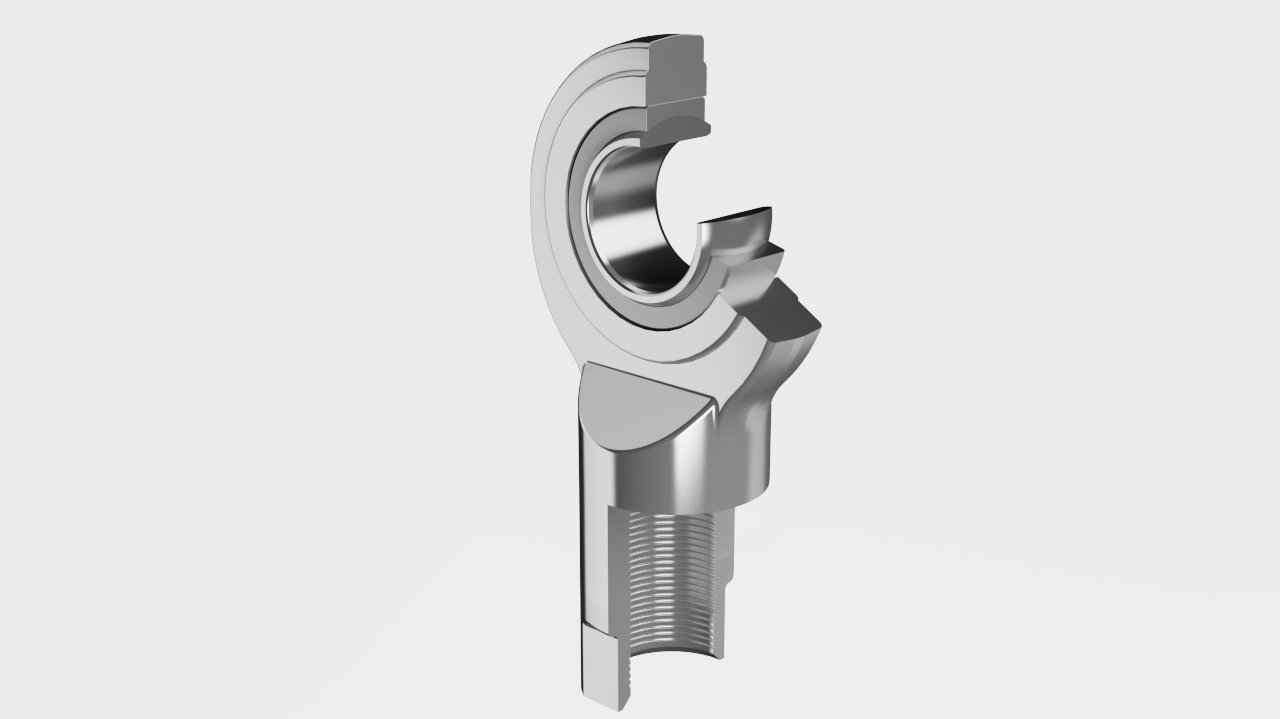

SA / SI..C Series
Maintenance-free structure incorporating PTFE liner permanently bonded to the outer
TYPE
Maintenance-Free
Thread
Female & Male

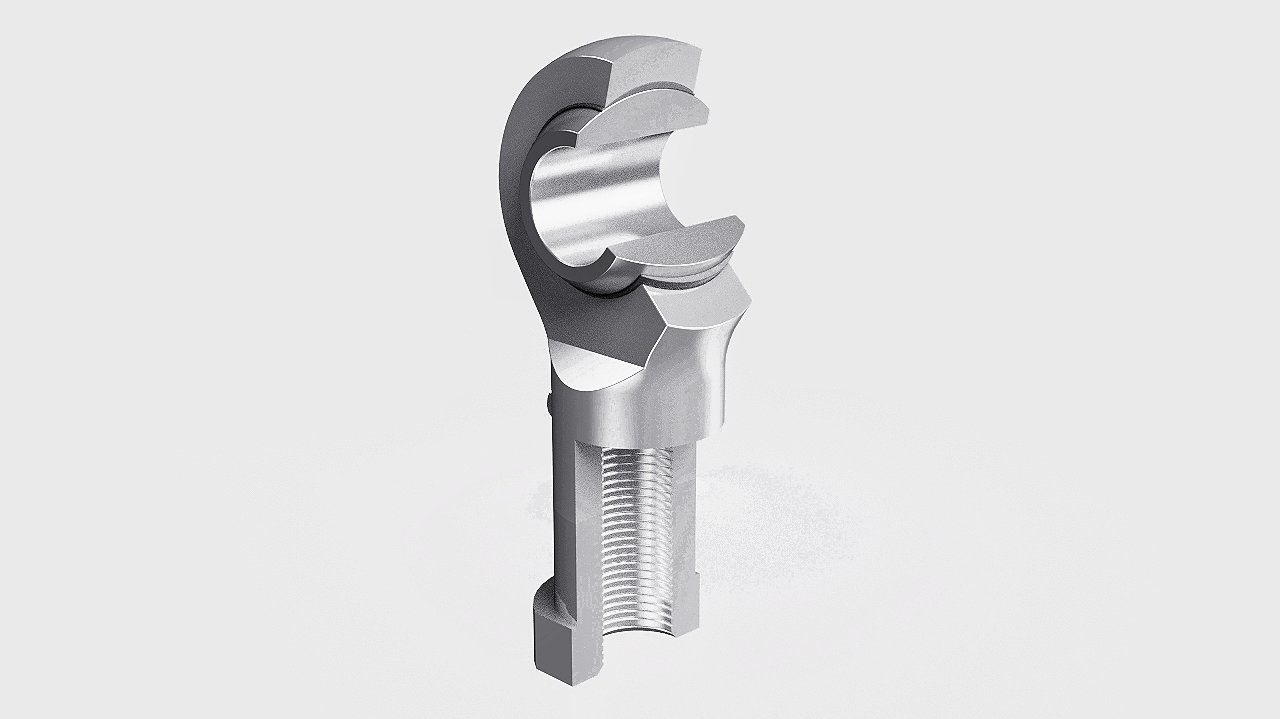

Metric PHS / POS
Standard metric linkage series featuring bronze race or PTFE composite inserts.
STANDARD
Metric Linkage
INSERT
Bronze / PTFE
Inch PHSB / POSB
STANDARD
Inch Linkage
INSERT
Bronze / PTFE
Where Stainless Rod Ends Are Used
LINOX distributes to equipment OEMs worldwide. Our stainless rod end bearings outlast standard chromoly or zinc-plated variants in demanding dynamic environments.
Hydraulic Cylinders
Marine Actuators
Food Filling Machines
Technical Reference
| SERIES MODEL | STRUCTURE | BORE D (mm) | THREAD SIZE | WIDTH B (mm) | CENTER H1 (mm) | DYN. LOAD (kn) | STAT. LOAD (kn) |
|---|---|---|---|---|---|---|---|
| SA 6 E | Steel / Steel | 6 | M 6 x 1.0 | 6 | 36 | 3.4 | 8.1 |
| SA 8 E | Steel / Steel | 8 | M 8 x 1.25 | 8 | 42 | 5.5 | 12.9 |
| SA 10 E | Steel / Steel | 10 | M 10 x 1.5 | 9 | 48 | 8.1 | 17.6 |
| SA 12 E | Steel / Steel | 12 | M 12 x 1.75 | 10 | 54 | 10.8 | 24.5 |
Grade Selection
The housing material dictates your equipment's lifespan. We forge from solid billets of three distinct alloys.
304
Food / Standard Grade
General-purpose austenitic grade offering excellent resistance to oxidation, high humidity, and standard food-safe cleaning agents without rusting.
316
Marine / Severe Grade
Molybdenum addition gives massive chloride resistance. Absolutely required for boat rigging, chemical plants, and prolonged salt-spray exposure.
PH
17-4PH / High Load
General-purpose austenitic grade offering excellent resistance to oxidation, high humidity, and standard food-safe cleaning agents without rusting.
Quality & Production
From raw billet forging to final export crating, transparent production monitoring for elite OEM procurement.
● Live Feed
Automated CNC Center
ISO 9001:2015
Certified Management
Automated CNC Center
Thread Gauging
Salt Spray Box
Technical FAQ
Answers regarding our spherical tolerances, dimensional standards, and custom threading capabilities.
